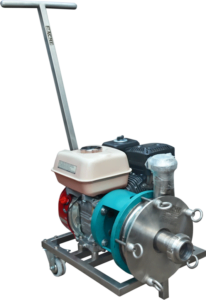

Portable Milk Pump
These pump needs the demands and obstinate requirement in hygienic to ensure the gentle product treatment. The main feature of this pump is mobility, the pump is duly provided with an attractive SS trolley with support. It can carried anywhere and can be operated easily. The material construction of this pump is SS316G makes them more suitable for food, pharma, cosmetics, breweries and milk processing industries. These pump meets the demand and obstinate requirement to hygienic to ensure the gentle product treatment. these pumps have low noises, simple, efficient and economic in design and are easy to maintain, these pumps can be run by petrol, kerosene or diesel and are available in two modesl APMP-100, APMP-200, APMP-300.
Pump Specification
| Pump Type | APMP 100 | APMP 300 | APMP 300 |
|---|---|---|---|
| MOC | SS316 | SS316 | SS316 |
| HEAD | 10 METER | 10 METER | 10 METER |
| CAPACITY | 500 TO 1500 LPH | 10000 TO 20000 LPH | 15000 TO 30000 LPH |
| SEAL TYPE | MECHANICAL SEAL | MECHANICAL SEAL | MECHANICAL SEAL |
| CONNECTION SIZE | 38×38 MM | 51×51 MM | 51×51 MM |
| CONNECTION TYPE | SMS UNION | SMS UNION | SMS UNION |
Engine Specification
| ENGINE MODEL | HONDA GX 100 | HONDA GX 160 | HONDA GX 200 |
|---|---|---|---|
| ENGINE TYPE | 4 STROKE AIRCOOLED, SINGLE CYLINDER, HORIZONTAL SHAFT | 4 STROKE AIRCOOLED, SINGLE CYLINDER, HORIZONTAL SHAFT | 4 STROKE AIRCOOLED, SINGLE CYLINDER, HORIZONTAL SHAFT |
| DISPLACEMENT | 97.7 CC | 163 CC | 196 CC |
| ENGINE RATED POWER | 2.1 KW/2.8 HP/3600 RPM | 3.6 KW/4.8 HP/3600 RPM | 4.1 KW/5.5 HP/3600 RPM |
| CONNECTION TYPE | SMS UNION | SMS UNION | SMS UNION |
| ENGINE MAXIMUM | 5.7 Nm @ 3600 RPM | 10.3 Nm @ 3600 RPM | 12.4 Nm @ 3600 RPM |
| TORQUE FUEL/TANK | PETROL/0.77 LITRE | PETROL/3.1 LITRE | PETROL/3.1 LITRE |
| CAPACITY IGNITION | TRANSISTOR TYPE MAGNETO | TRANSISTOR TYPE MAGNETO | TRANSISTOR TYPE MAGNETO |
| SYSTEM | IGNITION | IGNITION | IGNITION |
| AIR CLEANER | DUAL ELEMENT | DUAL ELEMENT | DUAL ELEMENT |
| DRY WEIGHT | 10.5 Kg | 15.1 Kg | 16.1 Kg |
| DIMENSION | 295 x 204 x 402 MM | 312 x 362 x 346 MM | 321 x 376 x 346 MM |
