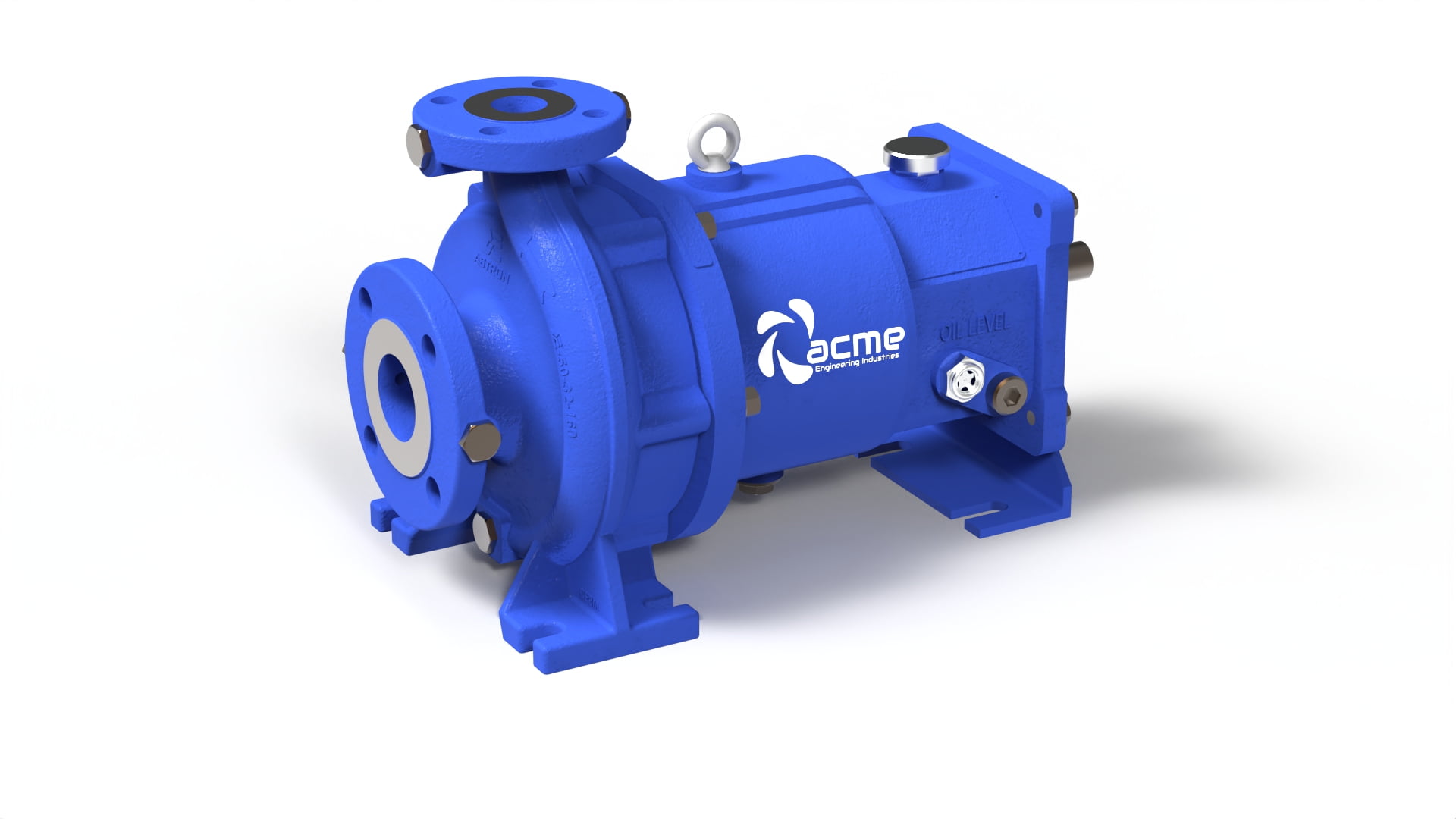

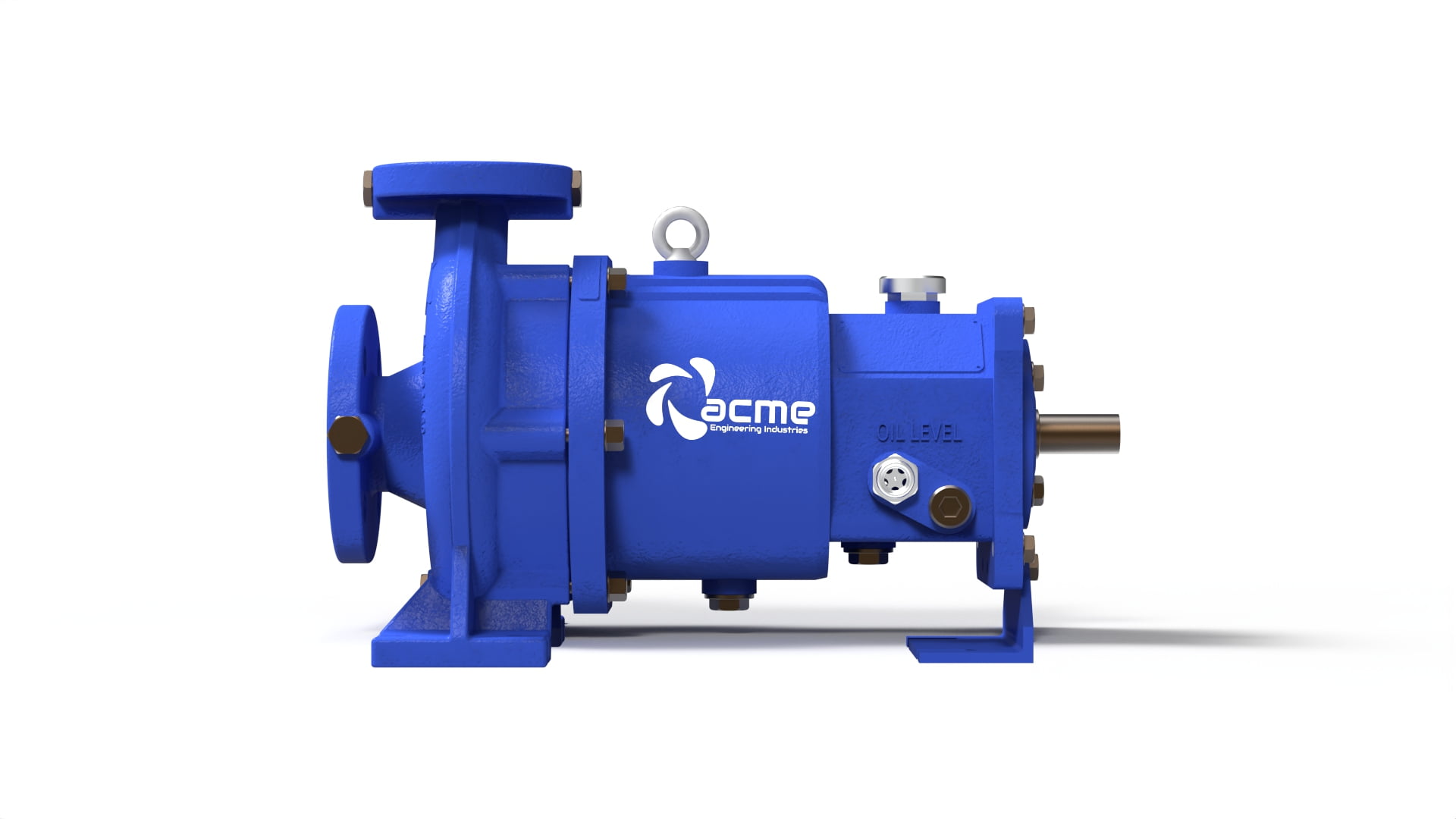

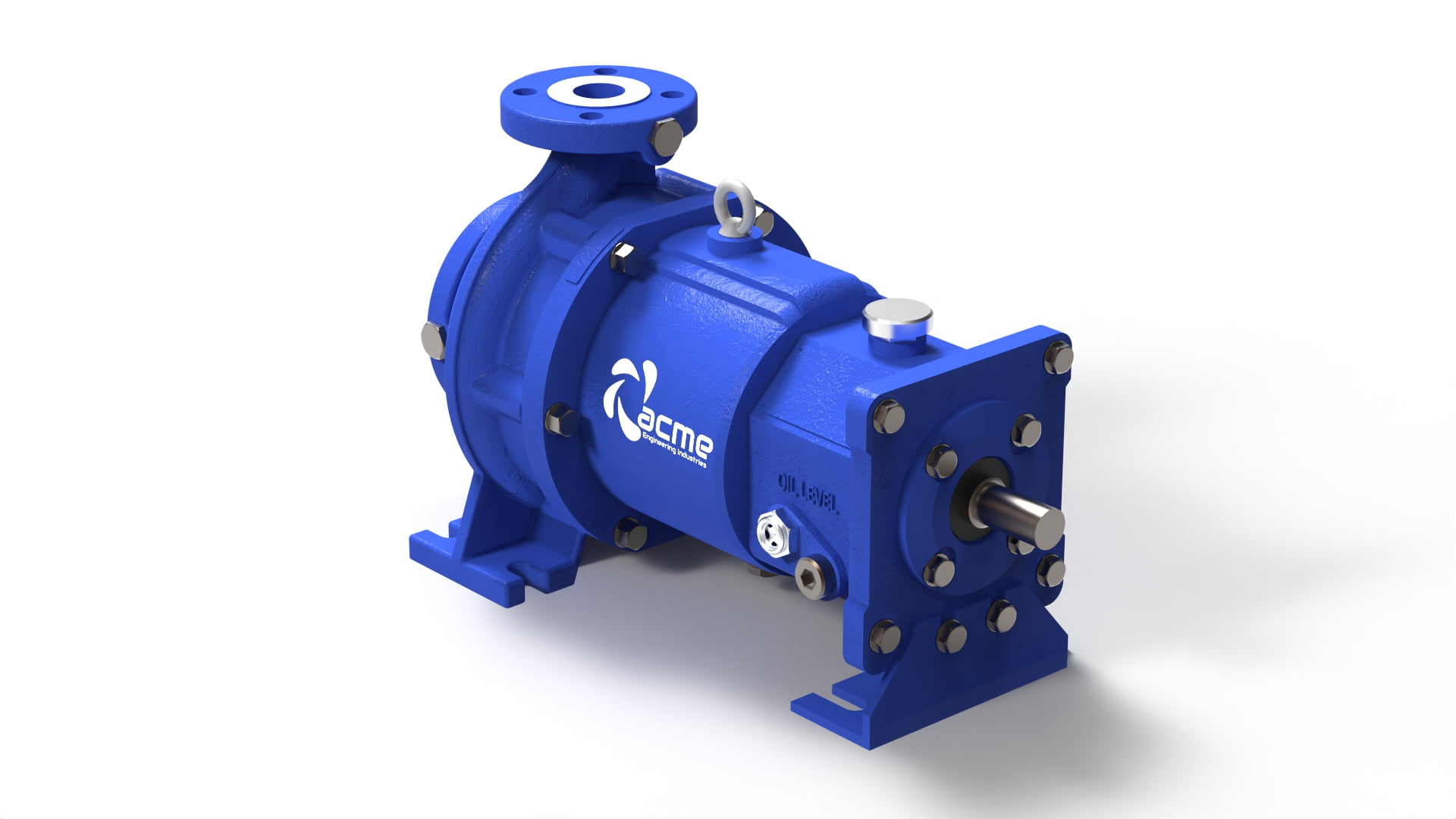

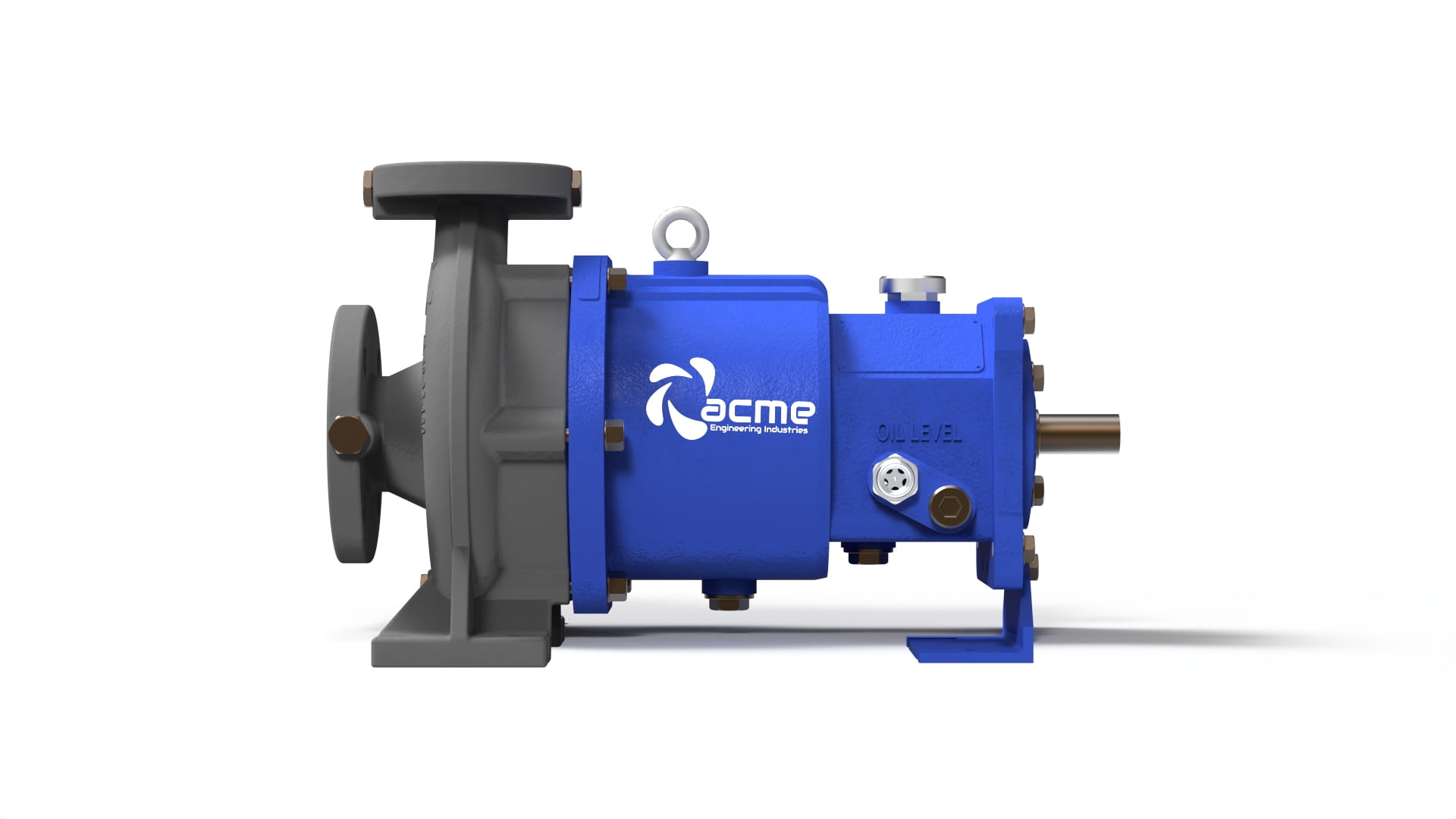

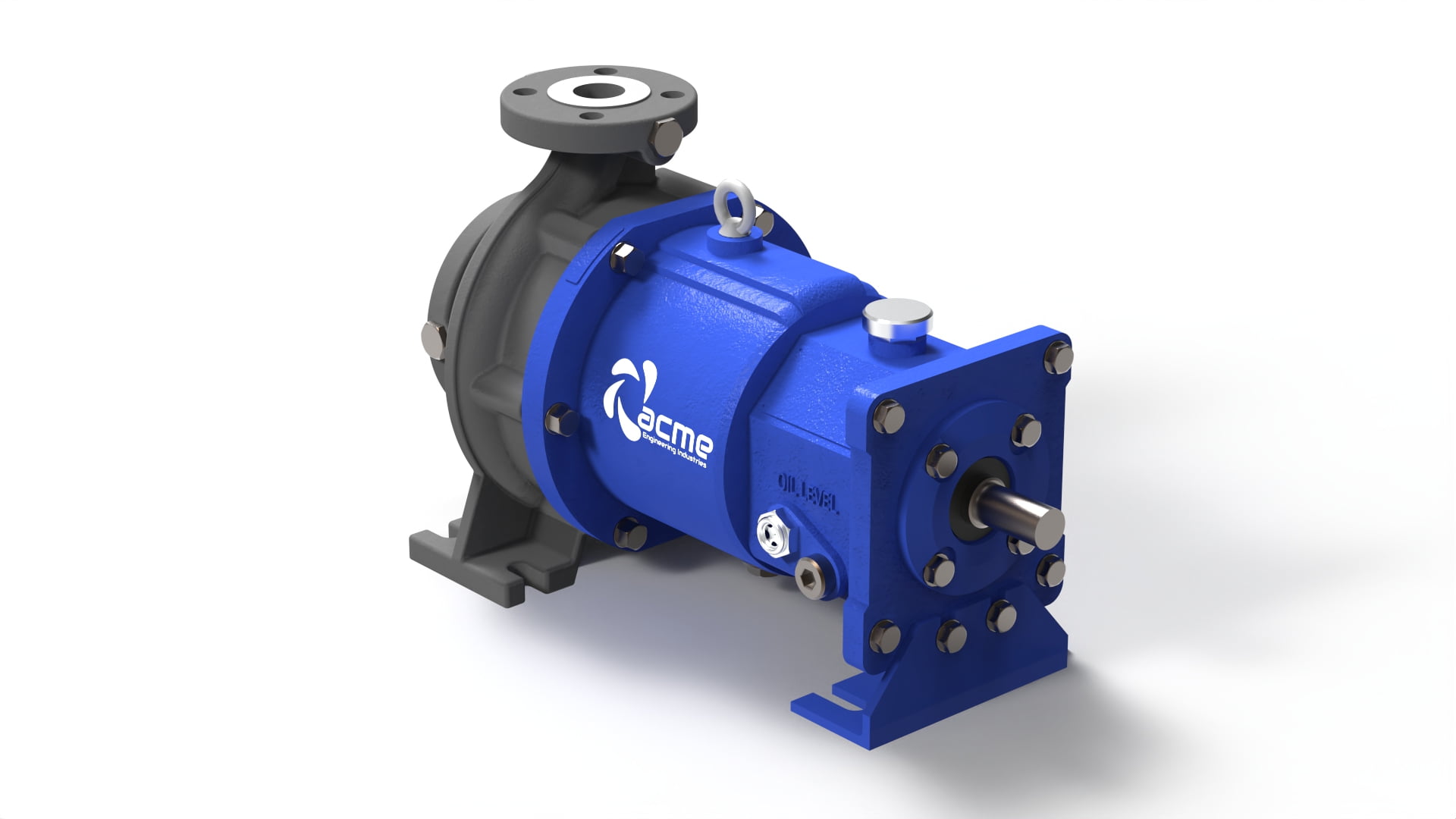

MAGNETIC DRIVE PROCESS PUMP - AMPB Series

Specifications

  • Flow up to : 100 m³/h
  • Head up to : 100 m
  • Max. Motor Power : 60 HP
  • Temperature Range : -35° C to +250° C
  • Max. Working Pressure : PN16/PN25
  • Solid handling Range : 5% – 150 Microns
  • Flange Class : Class 150 / Class 300
  • Drive : Long Couple
  • Impeller Type : Close
  • Magnets : Ferrite/ Rare earth/ Special Magnets
