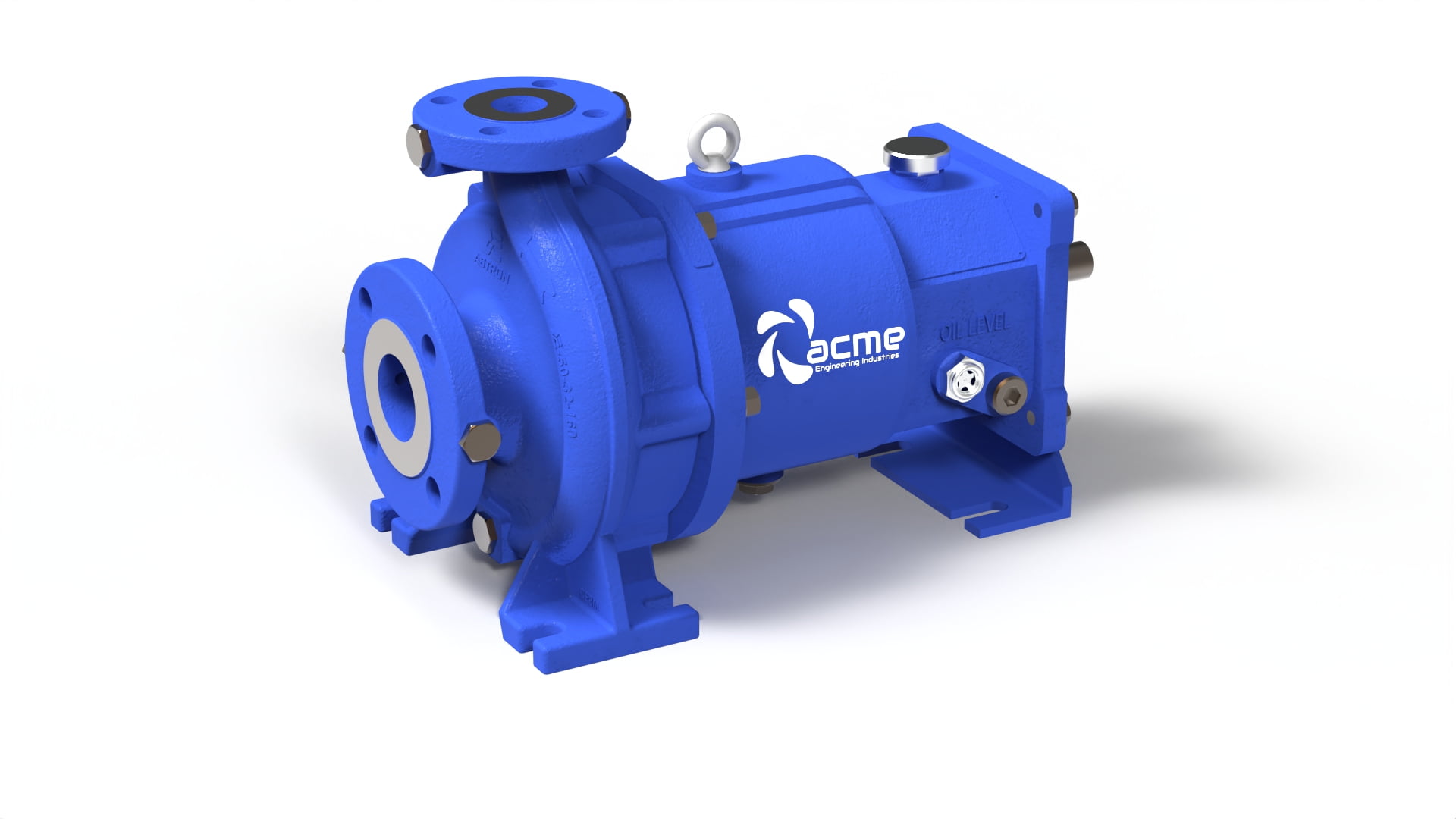

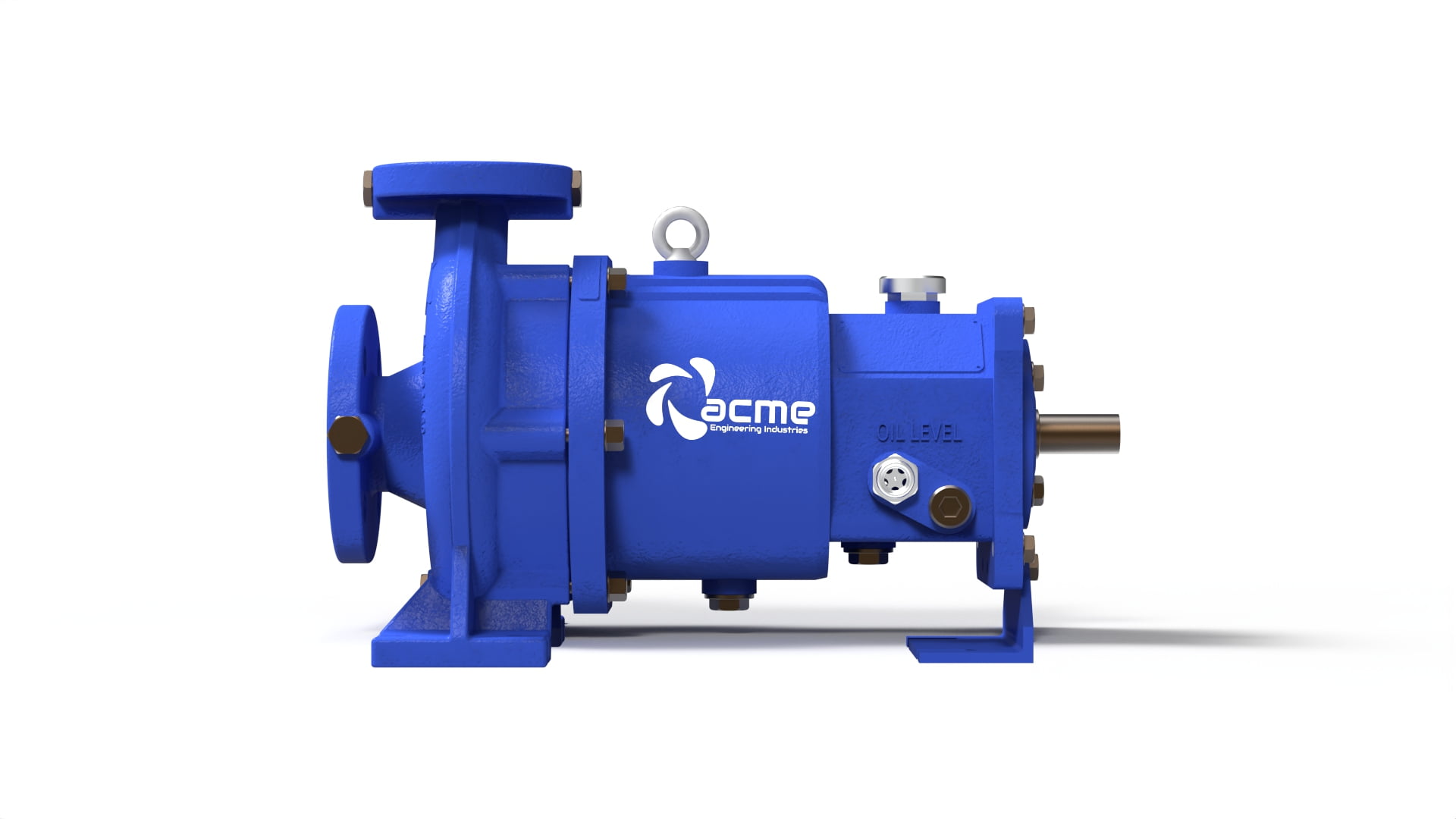

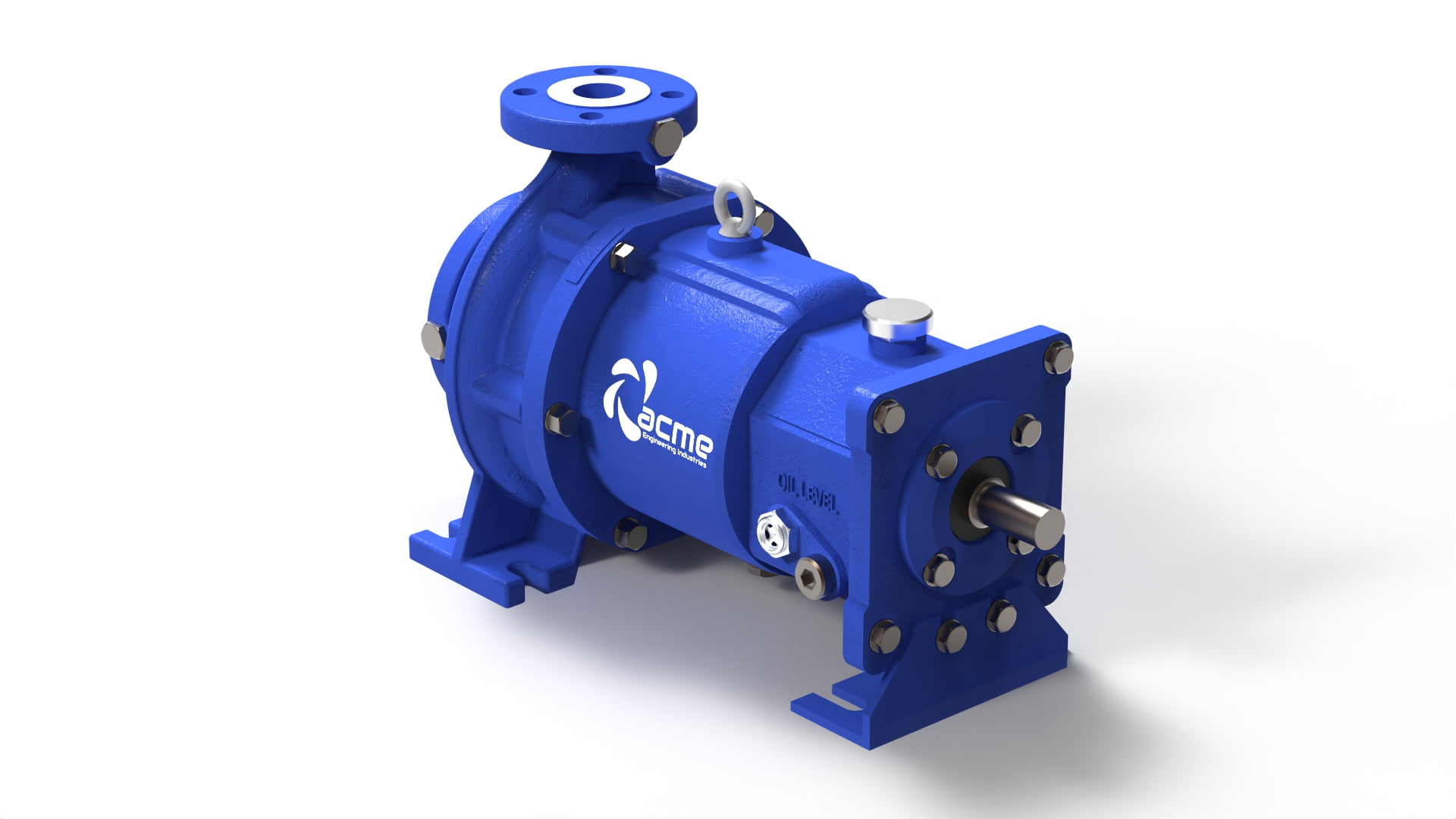

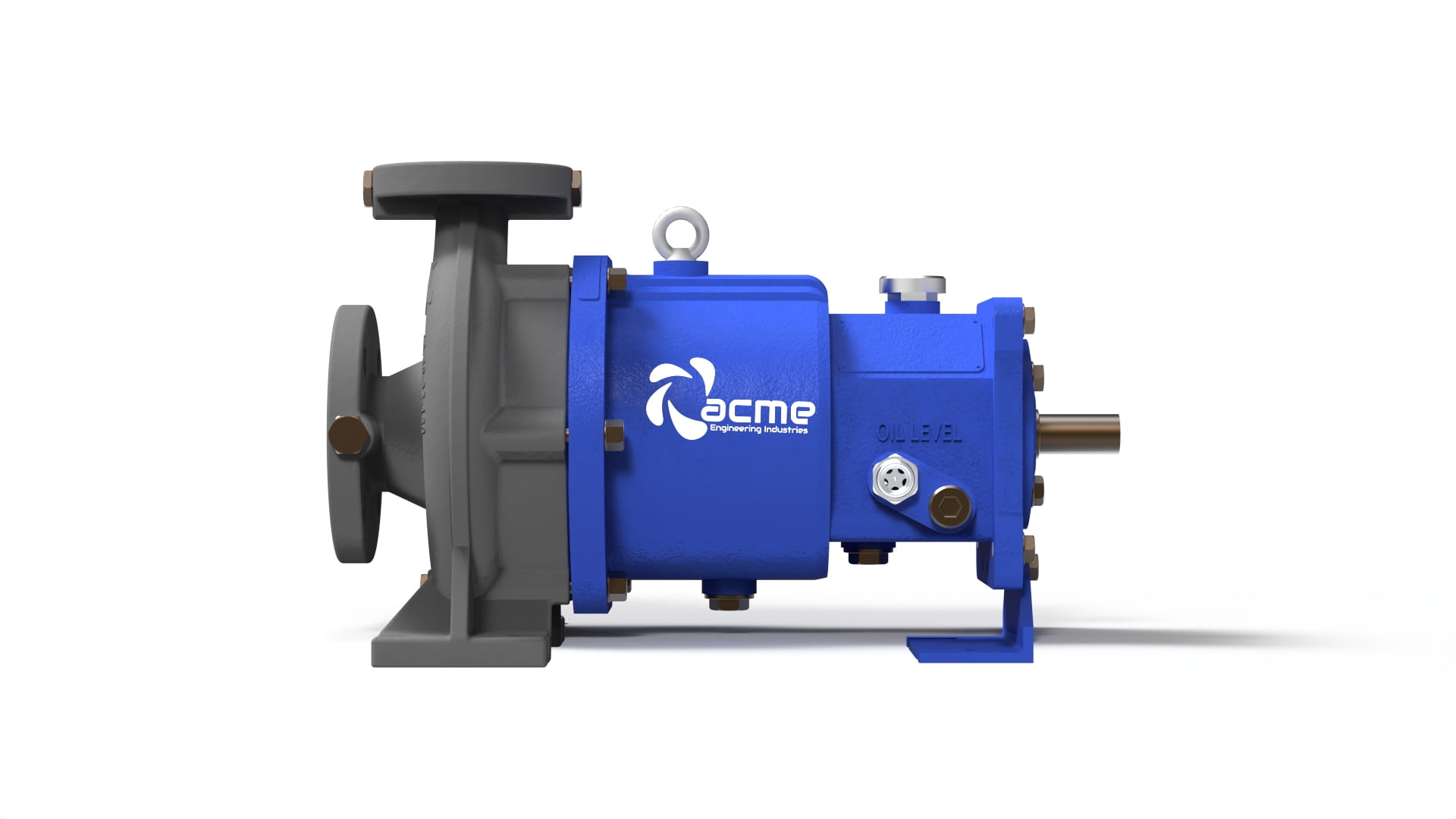

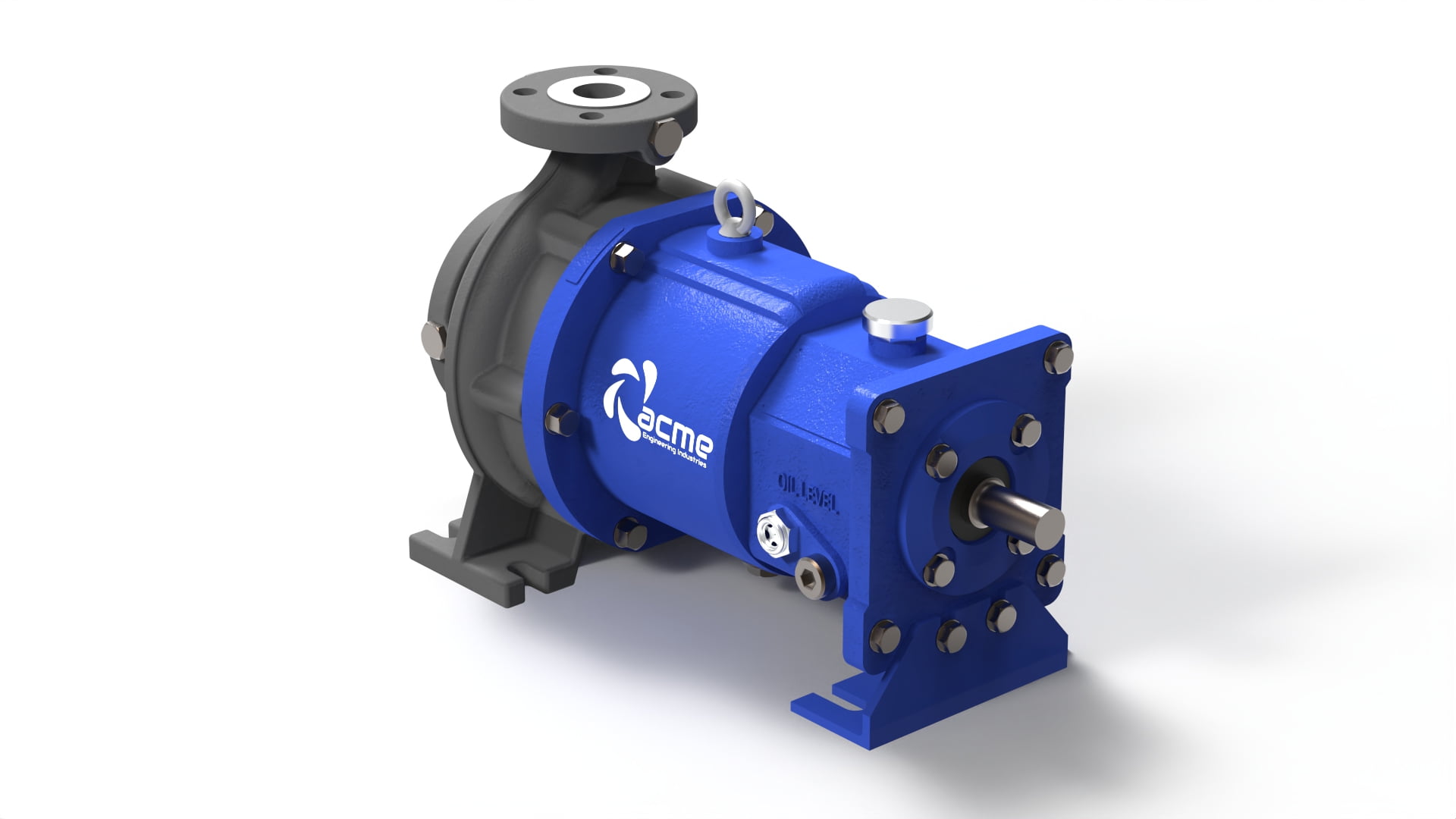

MAGNETIC DRIVE PROCESS PUMP - AMPB Series

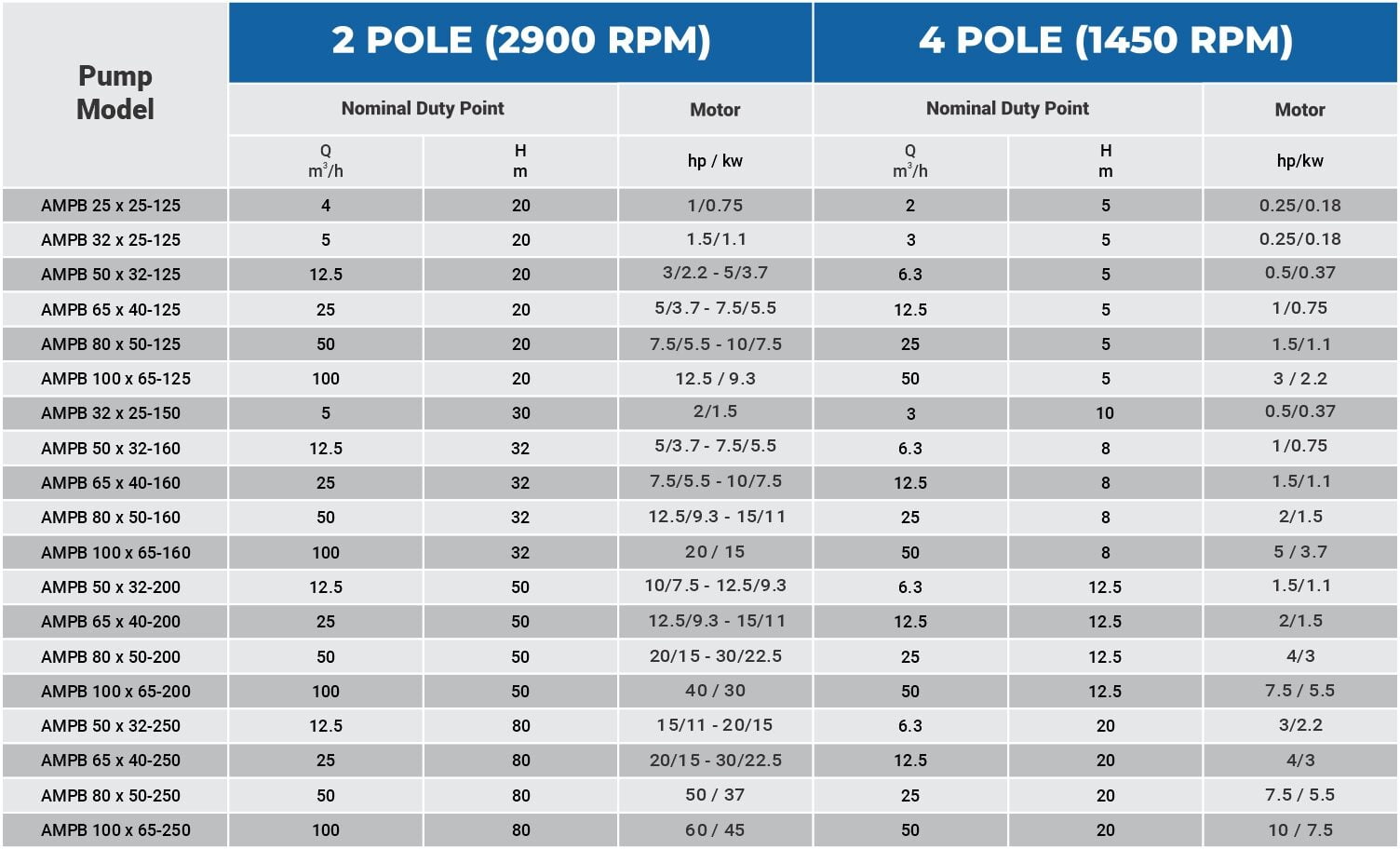

Specifications
- Flow up to : 100 m³/h
- Head up to : 100 m
- Max. Motor Power : 60 HP
- Temperature Range : -35° C to +250° C
- Max. Working Pressure : PN16/PN25
- Solid handling Range : 5% – 150 Microns
- Flange Class : Class 150 / Class 300
- Drive : Long Couple
- Impeller Type : Close
- Magnets : Ferrite/ Rare earth/ Special Magnets
