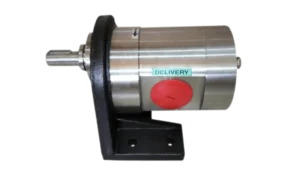

Gear Pump AGP series

Gear Pump AGP series

FEATURES

  • Complete SS-316 (CF&M) Investment Casting
  • Nitrided Gears and Shafts for Longer Life
  • Teflon Coated Bush for Smooth Performance
  • Optimum Internal Clearance for Accurate Capacity and lower Power Consumption
  • Double Helical Gear Design from SS-100 Onwards

Application

  • Chemical Industry
  • Pharmaceutical Industry
  • Dyeing & Printing Houses
  • Paint Industry
  • Food & Beverages

CAPACITY CHART

PUMP MODEL AGPSUCTION AND DELIVERYCAPACITY AT 1440 RPMMAX. PRESSURE KG/CM2MOTOR H.P. REQD.WT OF BARE PUMP (Kg.)
LPMUSM3/HRHORIZONTAL PORTING
AGP-025¼” x ¼”8.32.20.510kg0.75 HP2.0
AGP-403/8” x 3/8”16.64.41.010kg1 HP3.0
AGP-50½” x ½” 256.61.510kg1 HP3.50
AGP-75¾” x ¾”338.82.010kg1.5 HP4.50
AGP-1001” x 1”5013.23.010kg2 HP5.0
AGP-1251 ¼” x 1 ¼”10026.46.010kg3 HP7.0
AGP-1501 ½” x 1 ½”125337.510kg5 HP10.50
AGP-2002” x 2”15039.69.010kg7.5 HP20.50
AGP-2002” x 2”20052.812.010kg7.5 HP24.5
AGP-2502 ½” x 2 ½”2506615.010kg12.5 HP35.0
AGP-2502 ½” x 2 ½”30079.21810kg12.5 HP40
