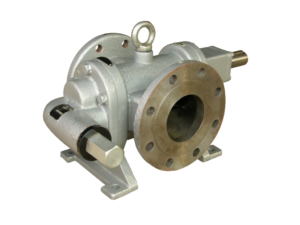

Gear Pump AERN Series
- Herringbone rotors design eliminates side thrust
- Modified tooth profile enhances tooth life
- Floating gear-design ensures uniform load distribution
- Low leakage path by design improves volumetric efficiency
- Extra thick shaft reduces bending effectively
CAPACITY CHART
| PARTS LIST WITH MATERIAL OF CONSTRUCTION | |||
| Sr. no | ITEM | QTY | MATERIAL |
|---|---|---|---|
| 1 | PUMP CASING | 1 | CI/CS/SS |
| 2 | FRONT COVER | 1 | CI/CS/SS |
| 3 | BACK COVER | 1 | CI/CS/SS |
| 4 | GLAND COVER | 1 | CI/CS/SS |
| 5 | ROTOR SHAFT | 1 | SAE8620/EN31/SS |
| 6 | STATOR SHAFT | 1 | SAE8620/EN31/SS |
| 7 | IMPELLER GEAR | 1 | EN-24-/SS |
| 8 | NEEDEL BRG. | 1 | NTN/IKO/NRB |
| 9 | WEAR PLATE | 1 | BRONZE/CI |
| 10 | LIFTING HOOK | 1 | STEEL |
| 11 | R.V.PISTON | 1 | MAL.IRON |
CAPACITY CHART
| PARTS LIST WITH MATERIAL OF CONSTRUCTION | |||
| Sr. no | ITEM | QTY | MATERIAL |
|---|---|---|---|
| 12 | R.V.PISTON | 1 | EN-B/SS |
| 13 | R.V.SPRINGER | 1 | SPR.ST. |
| 14 | R.V.A.D.SCREW | 1 | EN.-B/SS |
| 15 | BASE PLATE | 1 | M.S |
| 16 | COUP. GUARD | 1 | ALUMIN/MS |
| 17 | COUPLING | 1 | FLEXIBLE |
| 18 | COUP. KEY | 1 | EN.-B/SS |
| 19 | SEALING SYS | 2 | OS/MM/GP |
| 20 | DOWEL PIN | 4 | En31 |
| 21 | COMP. FLANGE | 2 | MS/SS |
| 22 | H/T HEX-BOLT | 23 | EN.-B/SS |
CAPACITY CHART
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | SIZE | CAPACITY | HORSE POWER & CAPACITY CHART | PUMP WT. | |||||||||||
| SPEED | LPM | US GPM | M3/HR | X’1 | 2 | 3 | 4 | 5 | 7 | 8 | 10 | 12 | |||
| 050-S | 1/2″ X 1/2″ | 1440 RPM | 8.3 | 2.2 | 0.5 | 0.2 | 0.23 | 0.27 | 0.3 | 0.32 | 0.36 | 0.38 | 0.43 | 0.47 | 8 |
| 050-M | 16.6 | 4.4 | 1 | 0.24 | 0.28 | 0.32 | 0.36 | 0.4 | 0.48 | 0.52 | 0.6 | 0.68 | |||
| 050-L | 25 | 6.6 | 1.5 | 0.3 | 0.36 | 0.41 | 0.47 | 0.52 | 0.63 | 0.7 | 0.81 | 0.93 | |||
| 100-S | 1″ X 1″ | 33.3 | 8.8 | 2 | 0.37 | 0.45 | 0.54 | 0.62 | 0.69 | 0.85 | 0.92 | 1.09 | 1.25 | 14 | |
| 100-M | 41.5 | 11 | 2.5 | 0.38 | 0.48 | 0.57 | 0.65 | 0.76 | 0.95 | 1.08 | 1.23 | 1.41 | |||
| 100-L | 50 | 13.2 | 3 | 0.4 | 0.5 | 0.6 | 0.75 | 0.89 | 1.17 | 1.3 | 1.59 | 1.85 | |||
| 150-S | 1 1/2″ X 1 1/2″ | 83.3 | 22 | 5 | 0.7 | 1 | 1.2 | 1.4 | 1.5 | 1.95 | 2.15 | 2.55 | 2.95 | 22.5 | |
| 150-M | 100 | 27.6 | 6 | 0.85 | 1.1 | 1.35 | 1.55 | 1.77 | 2.22 | 2.45 | 2.9 | 3.45 | |||
| 150-L | 125 | 33.3 | 7.5 | 1.05 | 1.45 | 1.95 | 2.1 | 2.4 | 2.95 | 3.25 | 4 | 4.9 | |||
| 200-S | 2″ X 2″ | 150 | 39 | 9 | 1.35 | 1.8 | 2.45 | 3 | 3.5 | 4.5 | 5.25 | 6.35 | 7.6 | 28 | |
| 200-L | 200 | 52.8 | 12 | 1.8 | 2.4 | 2.95 | 3.5 | 4.05 | 5.15 | 5.7 | 6.9 | 8.1 | |||
| 250-S | 2 1/2″ X 2 1/2″ | 250 | 66 | 15 | 2 | 2.5 | 3.2 | 3.75 | 4.3 | 5.6 | 6.2 | 7.7 | 9.5 | 43 | |
| 250-L | 333 | 88 | 20 | 3.8 | 4.65 | 5.5 | 6.35 | 7.25 | 9.05 | 10.5 | 12.2 | 14.35 | |||
| 300-S | 3″ X 3″ | 415 | 105 | 25 | 5 | 6 | 7 | 8 | 9 | 11 | 12 | 14.25 | 16.5 | 59 | |
| 300-L | 500 | 132 | 30 | 6 | 7.35 | 8.65 | 10.15 | 11.45 | 14.05 | 15.4 | 17.9 | 21 | |||
| 400-S | 4″ X 4″ | 666.6 | 176 | 40 | 8.85 | 10.5 | 12 | 13.65 | 16.25 | 18.25 | 20 | 22 | 25.5 | 82 | |
| 400-L | 833.3 | 220 | 50 | 9.5 | 11.5 | 14 | 16 | 18 | 22.5 | 25 | 30 | 35.5 | |||
| 500-S | 5″ X 5″ | 1000 | 264 | 60 | 14.5 | 17.2 | 19 | 22 | 24.8 | 30 | 32.4 | 37.2 | 42.5 | 150 | |
| 500-L | 1250 | 330 | 75 | 17.5 | 20.5 | 23.5 | 27 | 30.5 | 36.5 | 40 | 46 | 53 | |||
| 600-S | 6″ X 6″ | 1660 | 440 | 100 | 21.5 | 25.55 | 30 | 34.55 | 40 | 48.85 | 52.9 | 62 | 72 | 175 | |
| 600-L | 2083 | 550 | 125 | 25.5 | 31 | 36 | 41.5 | 46.5 | 57 | 63 | 72 | 81 | |||
